제품 설명


Click on type coaxial cable clamp has specific locking mechanism and you will hear "click" when the clamp is installed correctly. We provide click on type clamps for 1/2", 7/8", 1-1/4" and 1-5/8" cable.

The metallic parts can be 304 stainless steel or dacromet coating steel. And the plastic hangers are made from POM, which has excellent physical and mechanical properties and is one of the varieties of metal materials in plastics. It has good dimensional stability, excellent water resistance, oil resistance, chemical resistance and wear resistance.

Click on 7/8 inch coaxial cable clamp has one way, two way and three way to meet customer's installation requirements.

기술 사양

Pos구성 요소재료
1M8 스레드로드304 스테인리스
2M8 너트304 스테인리스
3M8 평 와셔304 스테인리스
4M8 스프링 와셔304 스테인리스
5앵글 어댑터304 스테인리스
6M8 x 40mm 육각 머리 나사304 스테인리스
7플라스틱 행거-7/8 "POM

케이블 크기 : 7/8 "

Hanger Type: Click on

케이블 수 : 1/2/3

축 방향 부하 능력 : 케이블 무게의 5 배

부식 저항 : 염수 분 무실에서 96 시간

장착 : M8 스패너

작동 온도 : -40 ° C ~ 85 ° C

UV 저항 : 가속 UV 라이프 챔버에서 100 시간 노출

진동 생존 : 공진 주파수에서 4 시간

RoHS 2002 / 95 / EC : 준수

풍모

» Waterproof: Our coaxial cable clamps are manufactured out of 304 stainless steel and UV resistant polypropylene (PP) or ABS plastic and anti-aging rubber inserts. They can be installed in different environments and won't be eroded by water.

» Fireproof: Our coaxial cable clamps are manufactured out of stainless steel 304 and UV resistant polypropylene (PP) or ABS engineering plastic. They can be operated in different range of temperatures.

» Service Life: Our coaxial cable clamps are manufactured by skilled & experienced wokers and quality inspected from raw material through product package. With fine workmanship, good quality and strict quality control, our cable clamps can service up to 10 years.

제품 코드

실제 요구 사항을 파악하고 좋은 가격을 제공하려면 아래 표에서 선택하고 필요한 제품 코드를 알려주십시오. 12 시간 이내에 회신 해 드리겠습니다!

FCA78-1Click On 7/8 inch Coaxial Cable Clamp, One Way
FCA78-2Click On 7/8 inch Coaxial Cable Clamp, Two Way
FCA78-3Click On 7/8 inch Coaxial Cable Clamp, Three Way

상품 패키지

빠른 정보


제조업체 : Volda
원산지 : 중국 강소

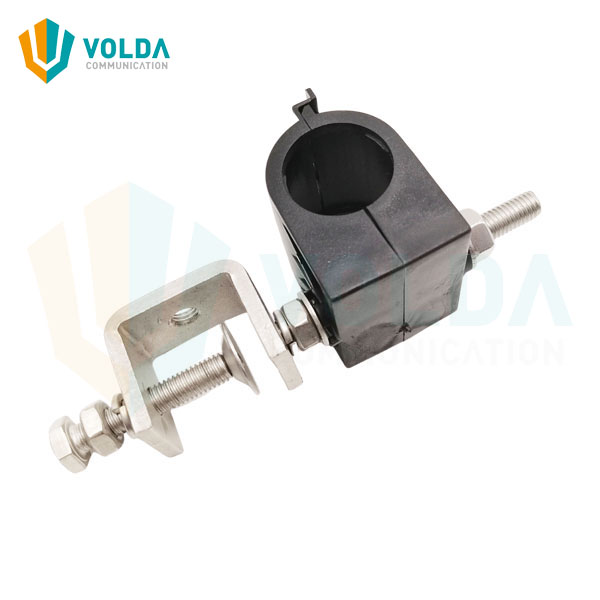

Product Name: Click On 7/8 inch Coaxial Cable Clamp
패키지 : 1 개 / 가방 + xx 개 / 판지 상자 + 우물 필름 포장 팔레트
Application: Coaxial cables
MOQ : 1000 PC
지불 조건 : 30% 예금, B / L 사본에 대한 잔액
샘플 제공 : 무료
선적항 : 중국 상하이

,
